Description

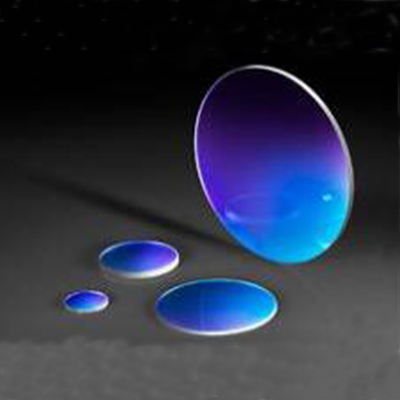

Sapphire window is made from synthetic sapphire and can be
made much thinner than BK7 windows. It is highly durable with a wide
transmission range due to its highly abrasion-resistant, with hardness
approaching that of diamonds. Sapphire window is best suited for scratch
resistance application that requires better transmission over a wide range
spectrum.
5.Silicon crystal windows

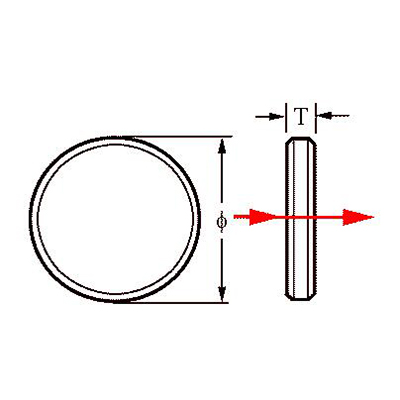

Sapphire Windows Specification:
|
Material: |
Sapphire |
|
Dimension Tolerance: |
+0.0, -0.1mm |
|
Thickness Tolerance: |
± 0.1mm |
|
Surface quality: |
80/50 |
|
Clear Aperture: |
>85% |
|
Flatness: |
λper 25mm |
|
Parallelism: |
3' |
|
Bevel: |
<0.25mm X 45° |
|
Coating: |
Upon requirement |
